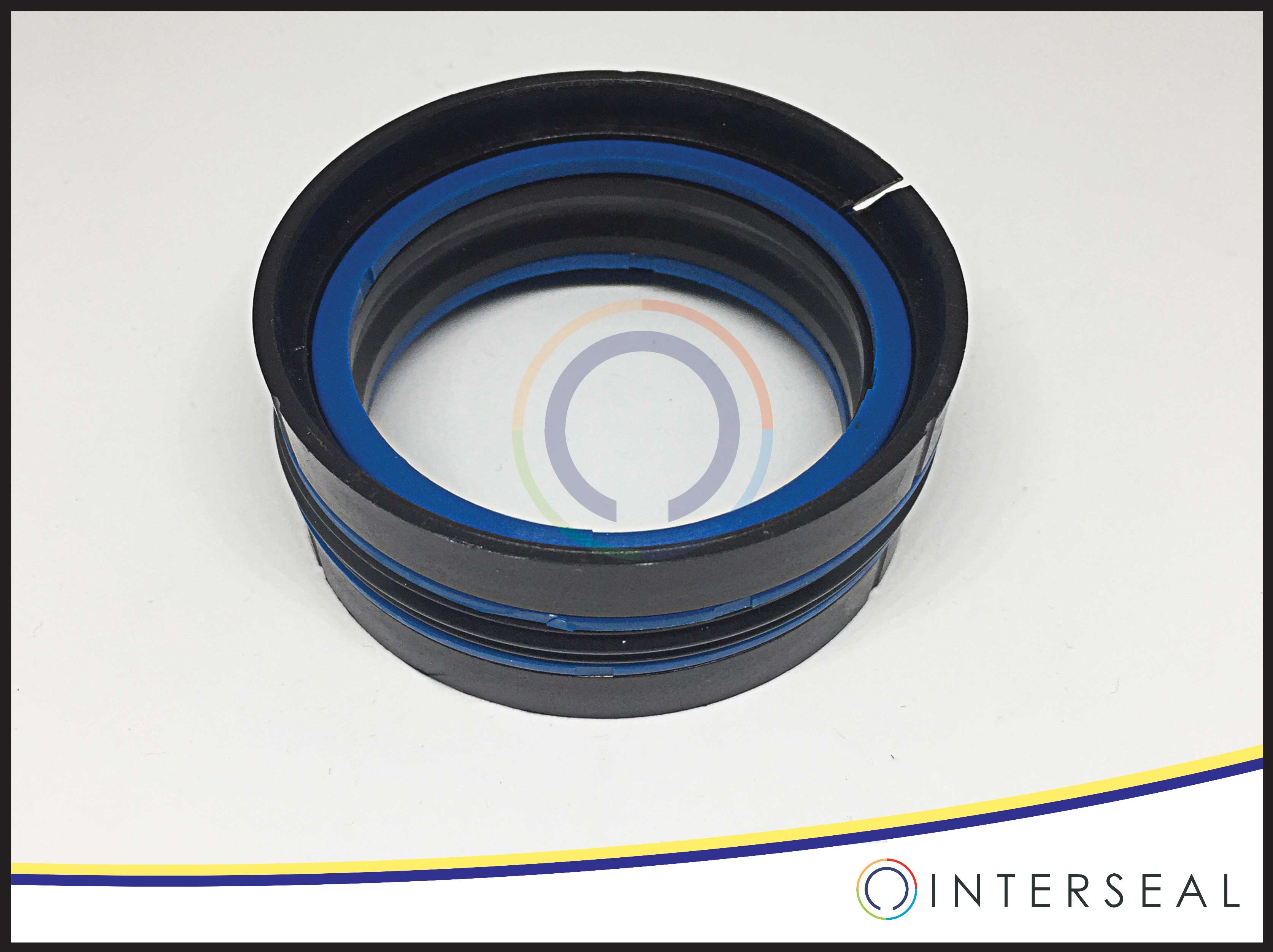

The Compact Seal® is an all-in one, double-acting piston seal, incorporating an elastomeric piston seal, two thermoelastomeric Back-up Rings and two thermoplastic wear rings. All components work together to provide a good balance of sealing, wear, and pressure resistance. It is designed for use in in either split or closed grooves.
- Size Range: 40 mm to 250 mm
- Temperature: -30 °C to 100 °C
- Pressure (max): 35 MPa
- Speed (max) 15 m/s
