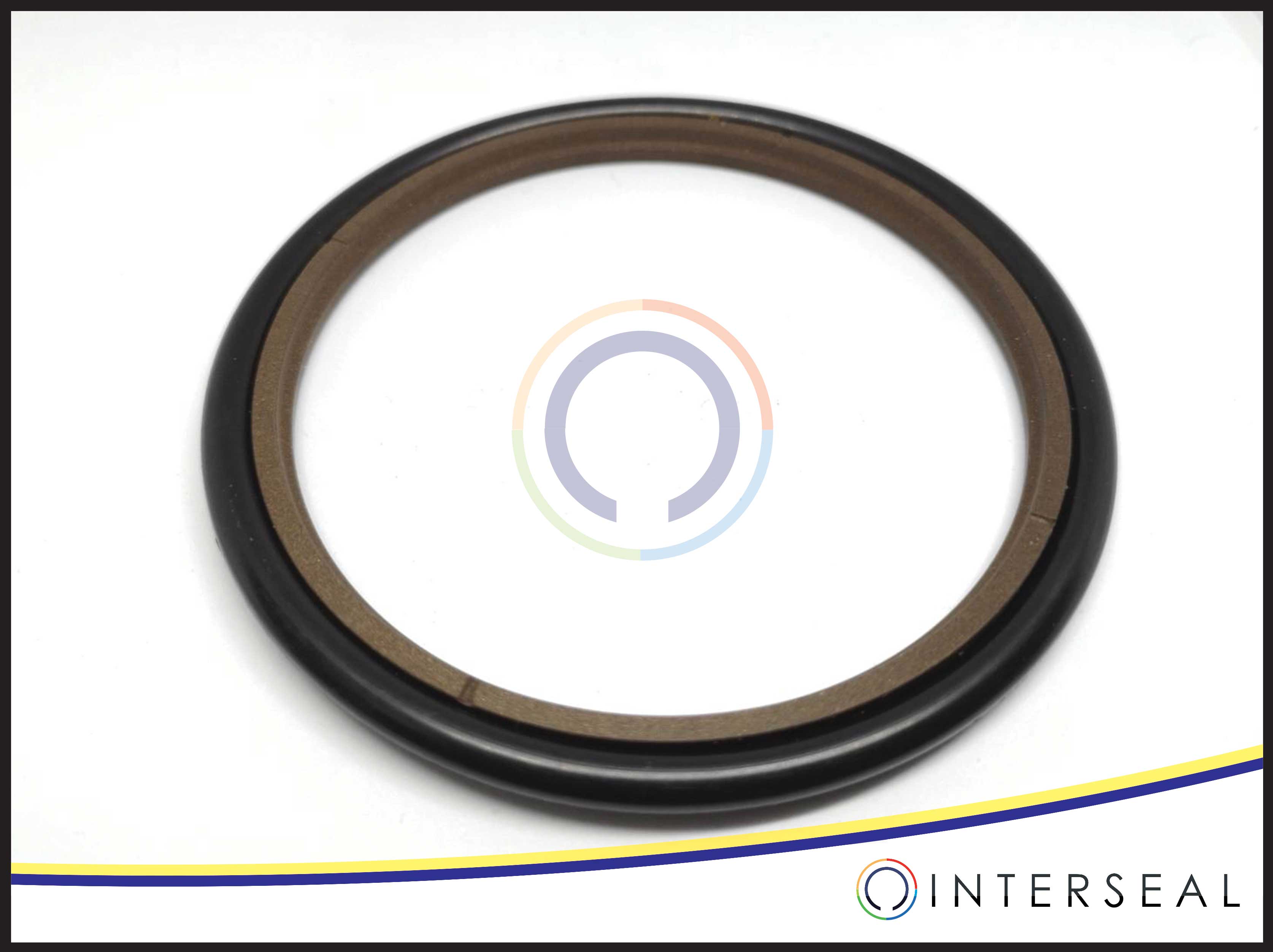

SK

หมวดหมู่สินค้า: ROD SEAL

Medium:Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others

แท็ก: HBTS sk seal

06 กันยายน 2561

ผู้ชม 3297 ผู้ชม

Advantages

1.High static and dynamic sealing effect

2. Stick-slip free operation for precise control

3. High abrasion resistance and resistance to extrusion

4. Long service life

5. Simple groove design, one-piece piston possible

6. Wide range of application temperatures and high resistance to chemicals, depending on the choice ofO-Ring material

7.Simple installation without seal edge deformation due to the K-edge

Available for all diameters up to 2.700 mm

Technical Date

1.Material

slide ring : PTFE-Bronze , O ring: NBR

slide ring : PTFE-carbon , O ring: FKM

2.Pressure:35 Mpa

3.Temperature:-45~+200 degree

4.Speed:15m/s

Medium: Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.

Standard or can fit the groove: HBTS
